R10  Smart Switch (Relay Version)
Smart Switch
Product Introduction

R10 Smart Switch (Relay Version)

Ideal Wall-mounted Smart Switch, Unlimited Expansion, Flexible Control

Advanced Scene Control / Full-device Control / Flexible Switching / ODM Supported

Core Advantages

●Sensitive Touch: Responsive and smooth interaction

●Customizable Buttons: Multi-function switching for scenes and device control

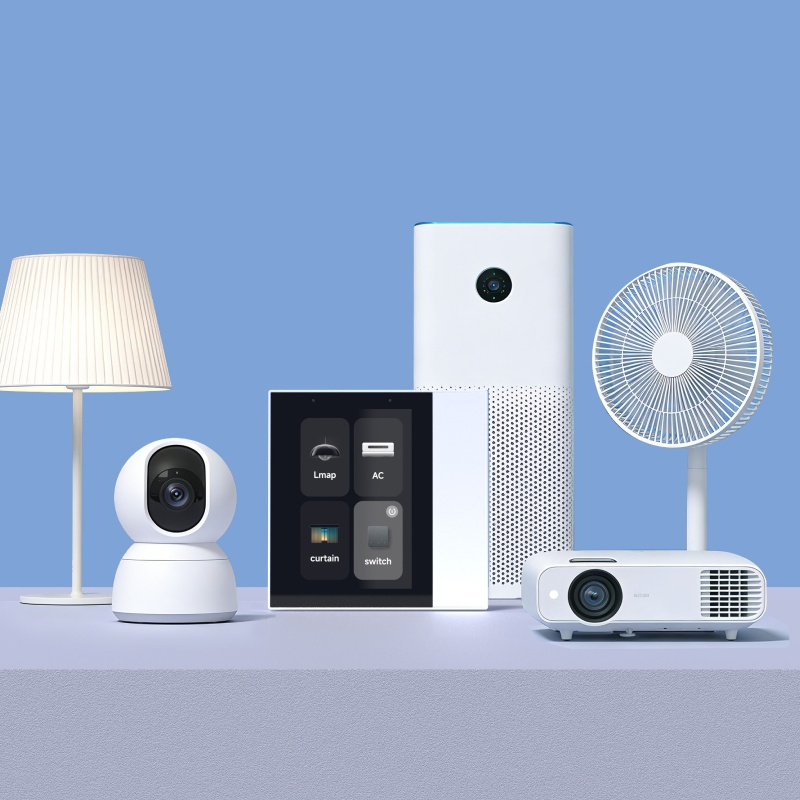

●All-in-one Control: One switch for an entire room, integrating all necessary control functions

●Cost-effective: Priced as a regular switch

●Open Compatibility: Supports access to various smart home platforms

Main Features

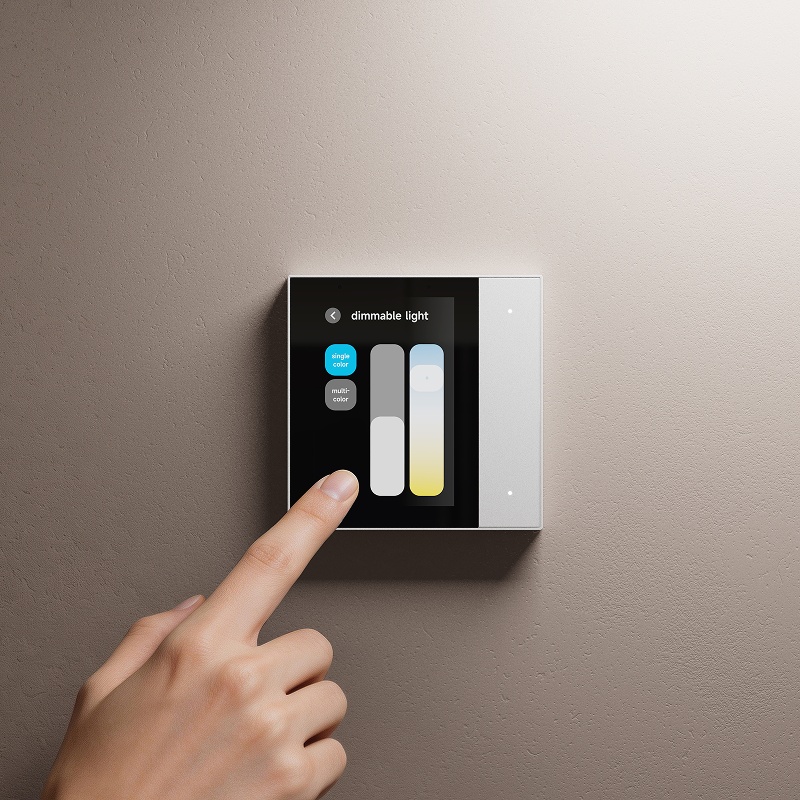

Sensitive Touch Experience

High-resolution display: 360 x 480

Enjoy smooth interaction with a responsive touch interface and clear visuals.

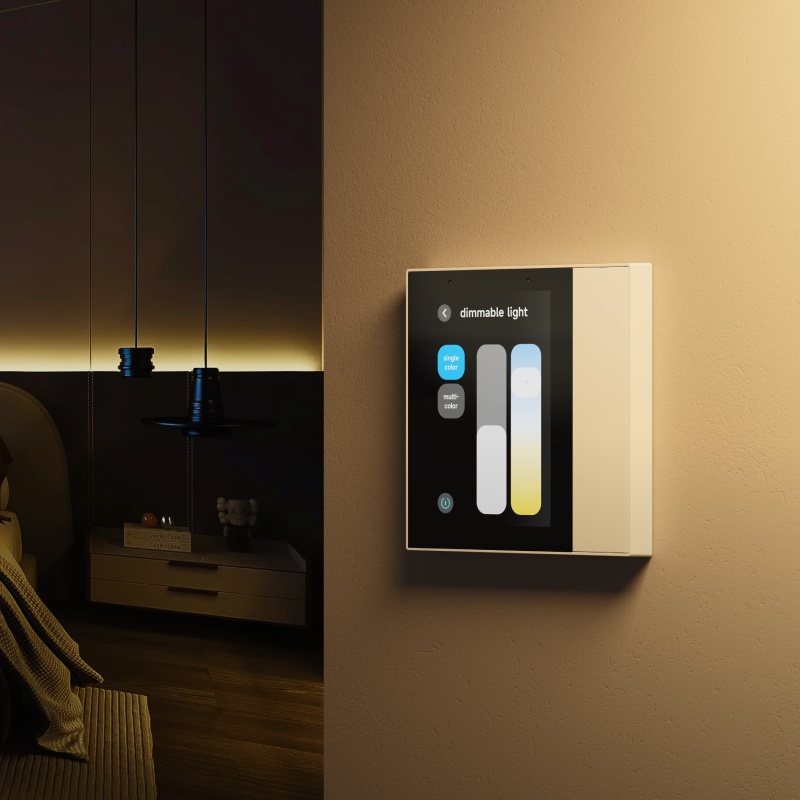

Personalized Lighting Control

Dual local switches for room lighting (e.g. living room lights, bookcase lights).

Bind with smart lamps to adjust color temperature, brightness, and on/off control.

Customize lighting for any mood or activity, even without network.

Advanced Scene Control

Supports multiple scenes for maximum convenience.

Easily create the perfect atmosphere for any occasion.

One-click switching between preset scenes to transform your space.

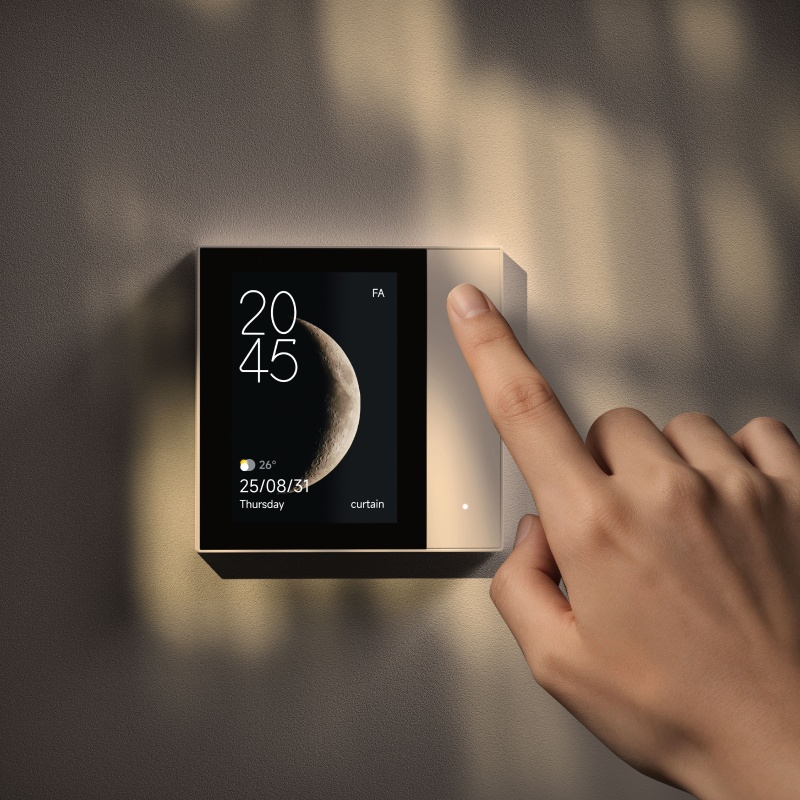

Dual Physical Buttons

Enhance home automation with intuitive physical control.

Physical buttons and screen operation work seamlessly together.

combining traditional usage habits with smart convenience.

Customizable Button Functions

Scene Control: When set to scene mode, relay control can be operated on the screen.

Relay Control: When set to switch mode, both physical buttons and screen can control devices.

Flexible Combined Design

Modern minimalist style, compact square design with sharp edges.

Can be installed standalone or combined with other switches for an elegant, unified look.

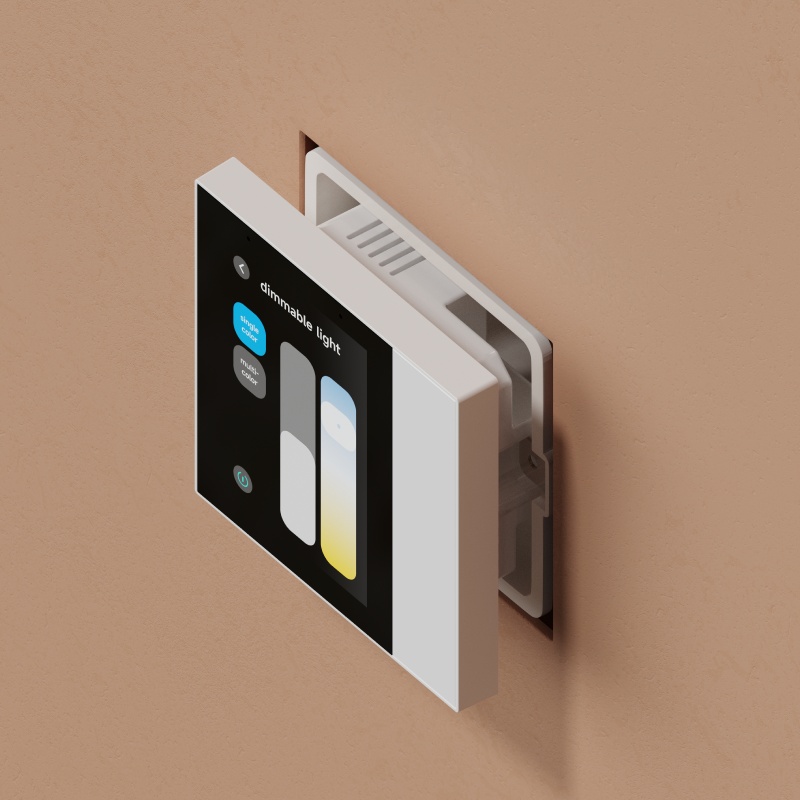

Easy Installation

Fits UK standard 86 bottom box.

Simple setup for quick smart home deployment.

Easy installation into existing wall boxes for a seamless upgrade.

ODM Customization Service

We provide professional ODM customization, including deep customization of function chips, platform configuration and software systems to fit regional market demands and brand positioning.

Full technical support and implementation services are provided throughout the process to reduce R&D and production costs for customers.

Item

Specification

System

RTOS

Dimensions

86mm × 86mm × 10mm

Installation Size

86mm × 86mm × 50mm

Display

3.3-inch HD IPS, 320×480

Housing Material

ABS+PC

Relay

2-gang; Max load per channel ≤ 500W

Power Supply

AC 90V–250V (50Hz)

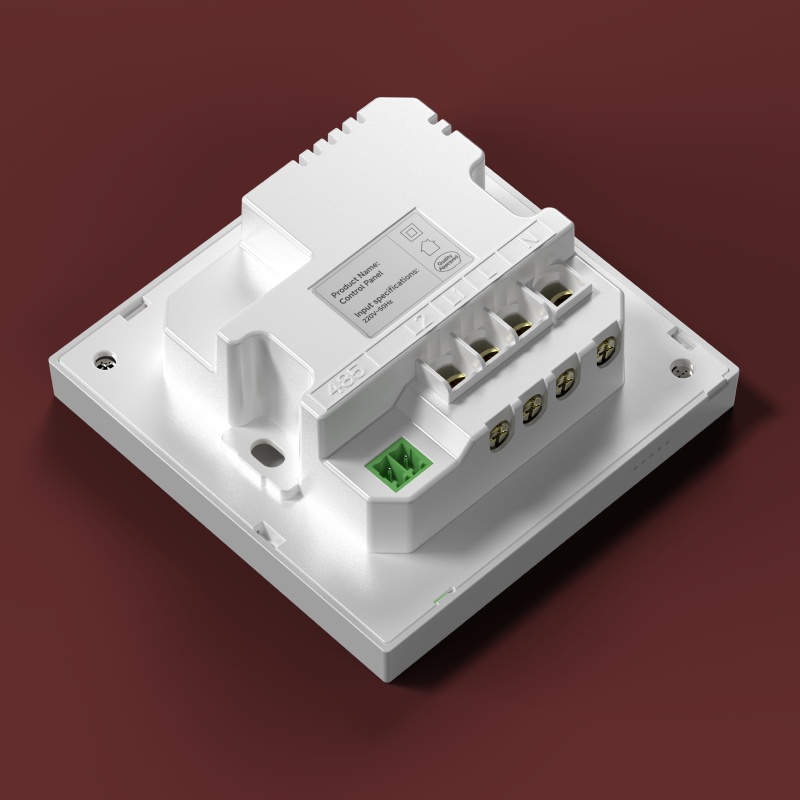

Interface

RS485, 2×Relay (L1, L2); Live/Neutral (L, N)

Installation

Flush Mounted

Product Video

Wireless Smart Speaker:Sync with Smart Panel to Build All-Round Commercial/Home Audio-Visual Systems

Smart Central Control Screen Series
  S10 M20 M10 L9 C8
  Smart Home Control Panel Smart Knob Center Control Screen All-in-one Wall Switch Panel Mini Tuya Gateway Panel Smart Hotel Control Panel
System Android 10.1 Android Android Linux Android 10.1
Screen Size 10.1 inch HD IPS LCD 1280*800 8-inch HD IPS LCD 1280*800 6-inch HD IPS LCD 720*1440 4-inch HD IPS 480*480 4-inch HD IPS 480*480
Control Method Knob+Button +Touch Screen Knob+Button+Touch Screen Button+Touch Screen Touch Screen Touch Screen
Interface RS485,Two-way relay(L1,L2),neutral
and live wire interface (L,N)
RS485、AUX、SPK1、SPK2 RS485,Two-way Relay(L1,L2),Neutral
and live wire interface (L,N)
RS485,Rwo-way Relay (L1,
L2),Neutral and live wire
interface(L,N)
RJ45、I/O、Audio-out、Ethernet、
Two-way relay (L1,L2)
Size(Appearance) 289mm*156mm*11mm 254.4mm*124.4mm*11.7mm 184mm*88mm*10mm 86mm*86mm*10mm 86mm*86mm*10mm
Size (Install) 86mm*86mm*70mm 86mm*86mm*70mm 86mm*86mm*70mm 86mm*86mm*70mm 86mm ·86mm*70mm
