T10 HVAC Smart Thermostat Panel: Air Conditioning + Floor Heating + Fresh Air in One Panel
Introduction: Modern building automation demands smarter, more consolidated control. Gone are the days when you needed three separate wall panels to manage air conditioning, floor heating, and fresh air ventilation. The T10 HVAC Smart Thermostat Panel from X-Focus redefines what a single device can accomplish on a commercial or residential wall.
Designed for system integrators, property developers, and Smart Home brand owners, the T10 consolidates three critical HVAC subsystems into one elegant, programmable panel — reducing installation complexity, lowering material costs, and elevating the end-user experience.
In this article, we'll break down the T10's core functionality, explain how its 3-in-1 design works in practice, and outline why it's becoming the preferred thermostat panel for high-end residential projects and hospitality installations across Asia, Europe, and the Middle East.
1. What Is the T10 HVAC Smart Thermostat Panel?
The T10 is a wall-mounted intelligent thermostat panel that simultaneously controls:
Fan speed, mode (cool/heat/auto/fan-only/dry), set temperature.
Target temperature, scheduling, on/off controls.
Fan speed, mode selection, air quality feedback integration.
This 3-in-1 capability is delivered through a single panel with a 3.5-inch color touch display, intuitive UI, and multi-protocol connectivity. Rather than wiring three controllers across a feature wall, installers can deploy one T10 and achieve complete HVAC control from a unified interface.
2. Core Features and Technical Specifications
2.1 Display & Interface
- 5-inch IPS color touch screen, 480×320 resolution
- Backlit interface with automatic brightness adjustment
- Multi-language display support (English, Chinese, Arabic, and more)
- Capacitive touch with glove-mode option for cold-climate markets
2.2 HVAC Control Capabilities

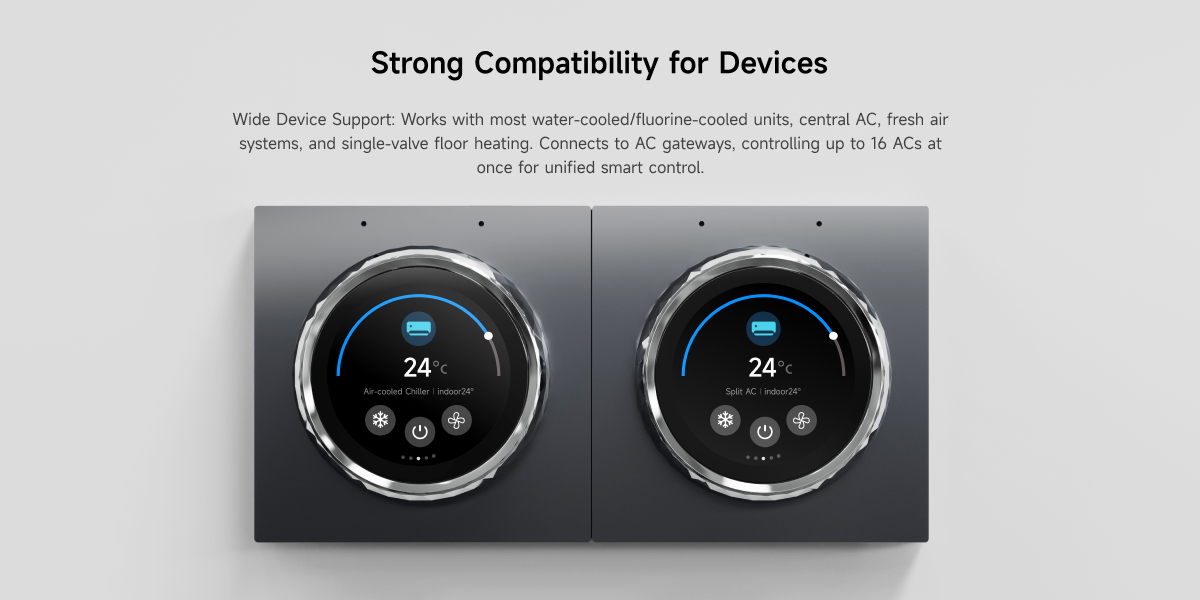

- AC: supports 2-pipe and 4-pipe fan coil units (FCU); compatible with most commercial HVAC brands via IR or 0–10V/dry contact
- Floor Heating: NTC temperature sensor input; supports electric and water-based radiant heating; precision ±0.5°C
- Fresh Air: supports single-speed and multi-speed ERV/HRV units; CO₂ sensor feedback integration
2.3 Protocol & Integration
- RS485 (Modbus RTU) — standard for commercial BMS integration
- KNX (optional module) — for European building automation projects
- Wi-Fi + BLE — for residential apps and local mesh networks
- Zigbee 3.0 (optional) — for Smart Home gateway compatibility

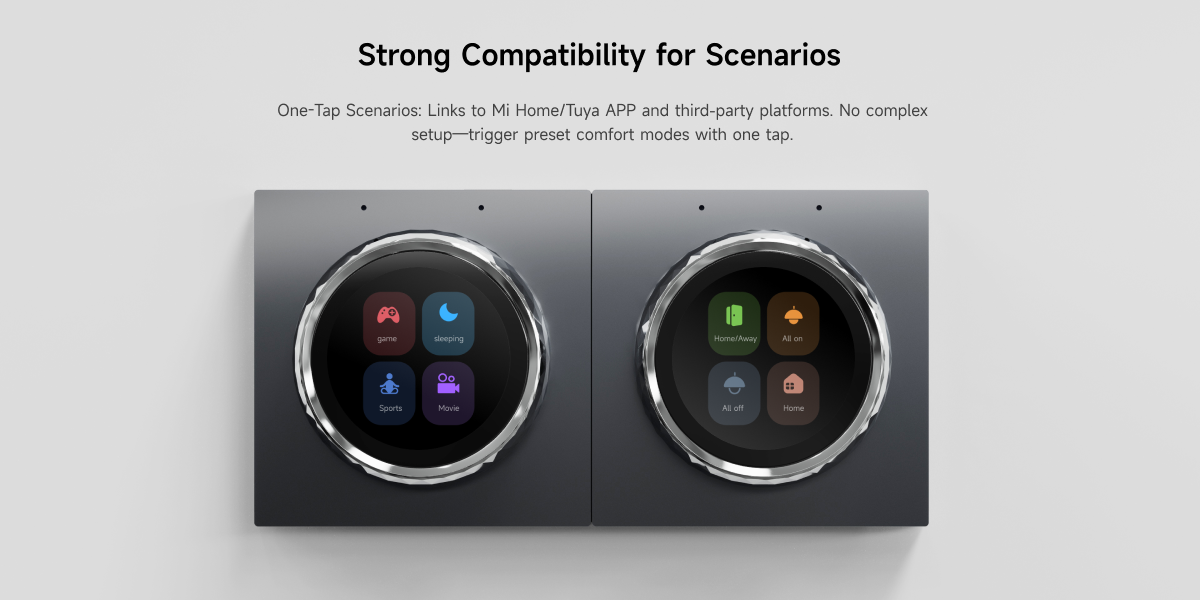

- Compatible with: Tuya platform, Home Assistant, KNX ETS, BACnet gateway adapters
2.4 Scheduling & Automation
- 7-day programmable schedule for each subsystem independently
- Setback mode and away mode for energy saving
- Occupancy sensor input (optional) for auto comfort/standby switching
3. Why 3-in-1 HVAC Control Matters for B2B Buyers
3.1 Reduced Installation Cost
The T10 reduces material cost and installation time by an estimated 35–50% per room on large-scale deployments by replacing three separate panels and wiring runs.
3.2 Simplified Commissioning
Technicians set addresses, calibrate sensors, and define schedules from one place — eliminating version mismatch and cross-brand compatibility issues.
3.3 Better End-User Experience
Occupants interact with one device. The clean, unified interface reduces the learning curve and support calls for hospitality operators.
4. Ideal Application Scenarios
4.1 Luxury Residential Projects: High-end villas and apartments demanding premium control and customizable faceplates (aluminum alloy, matte black, pearl white).
4.2 Hotel Guest Room Automation: Supports DND/MUR integration and PMS connectivity via Modbus or BACnet for five-star guest experiences.
4.3 Office Buildings and Co-working Spaces: Straightforward wiring into existing BMS infrastructure for centralized monitoring and control.
4.4 Healthcare and Education Facilities: Integrated FAU control combined with CO₂ feedback for compliant, auditable ventilation management.
5. ODM Customization Options
- UI theme customization — match your brand color system and iconography
- Faceplate design — custom silk-screen, laser engraving, or injection-molded finish
- Protocol module swap — KNX (Europe), Zigbee (North America), RS485 (Asia)
- Firmware localization — language packs, regional units (°C / °F), and compliance presets
Minimum order quantities for ODM variants start at 500 units. NPI lead time averages 8–12 weeks.
6. Comparing T10 Against Conventional Alternatives
7. Sourcing and Partnership
X-Focus manufactures the T10 in-house at our Shenzhen facility. We work directly with:
- System integrators seeking reliable panels with after-sales support
- Property developers needing standardization across large projects
- Smart Home brands looking for white-label thermostat solutions
- Distributors seeking locally compliant HVAC panels (Middle East, SE Asia, Europe)
Conclusion
The T10 HVAC Smart Thermostat Panel is X-Focus's answer to the demand for smarter, leaner building control hardware. By collapsing AC, floor heating, and fresh air control into a single, protocol-flexible panel, it meaningfully reduces the complexity and cost burden for integrators and developers — while delivering a polished experience for end users.
